  • HYDRAULIC BREAKERS(N2 Gas Assisted) HYDRAULIC BREAKERS
  • RTS provides one of the most sophisticated solutions for your demolition needs in any working conditions with its many different models
    that are divided into various versions of small, medium range and large.
    This provides end-users with a better choice, ensuring that they are able to find the most suitable and ideal breaker-excavator match.
  • SILENT-TYPE OPEN-TYPE
  • Compact Class Medium Class Heavy Duty Class
  • Standard Specification

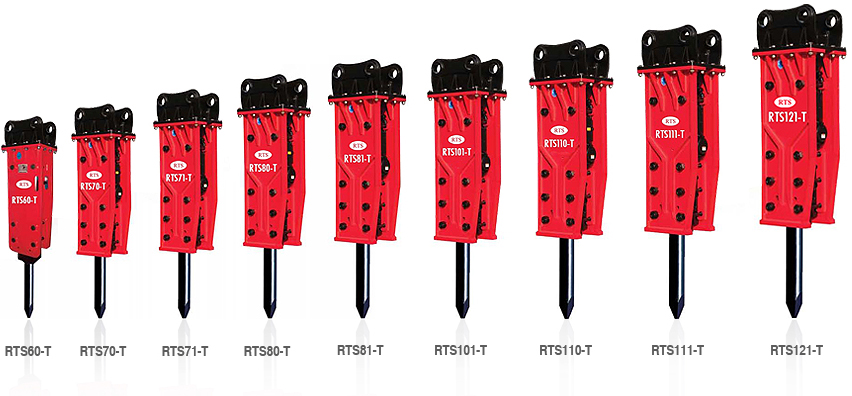

  • DESCRIPTION UNIT RTS60-T RTS70-T RTS71-T RTS80-T RTS81-T RTS101-T RTS110-T RTS111-T RTS121-T
    Operating Weight kg 975 1,410 1,525 1,840 2,042 2,250 2,409 2,750 3,323
    lbs 2,149 3,108 3,362 4,056 4,502 4,960 5,311 6,062 7,326
    Impact Rate bpm 400 ~ 700 450 ~ 700 350 ~ 650 450 ~ 600 350 ~ 450 350 ~ 420 400 ~ 550 350 ~ 450 280 ~ 360
    Operating Pressure bar 150 ~170 150 ~170 150 ~170 160 ~180 160 ~180 160 ~180 160 ~180 160 ~180 160 ~180
    psi 2,175 ~2,466 2,175 ~2,466 2,175 ~2,466 2,320 ~2,611 2,320~2,611 2,320 ~2,611 2,320 ~2,611 2,320 ~2,611 2,320 ~2,611
    Setting Pressure bar 200 200 200 210 210 220 220 220 220
    psi 2,901 2,901 2,901 3,046 3,046 3,191 3,191 3,191 3,191
    Back Head Pressure bar 16 6 13 6 13 13 6 8 13
    psi 232 87 189 87 189 189 87 116 189
    Accumulator Pressure bar - 60
    psi 870
    Required Oil Flow lpm 80 ~110 90 ~120 90 ~120 125~ 150 125 ~150 160 ~5.71 160 ~190 160 ~190 190 ~250
    Tool Diameter mm/inch 100 /3.94 120 /4.72 125 /4.92 135 /5.31 140 /5.51 145 /5.71 150 /5.91 150 /5.91 155 /6.10
    Tool Length mm 1,020 1,100 1,100 1,200 1,300 1,350 1,300 1,400 1,500
    Suitable Ecavator ton 10.0 ~16.0 16.0 ~23.0 17.0 ~24.0 20.0 ~29.0 22.0 ~33.0 25.0 ~36.0 26.0 ~39.0 30.0 ~44.0 37.0 ~53.0
    lbs 22,045~35,272 35,272~50,704 37,477~52,908 44,090~63,931 48,499~72,749 55,113~79,362 57,317~85,976 66,135~96,998 81,567~116,839
  • *Specifications and design are subject to change without notice.
  • *Operating weight includes a standard tool and top mounting cap.
