  • HYDRAULIC BREAKERS(N2 Gas Assisted) HYDRAULIC BREAKERS
  • RTS provides one of the most sophisticated solutions for your demolition needs in any working conditions with its many different models
    that are divided into various versions of small, medium range and large.
    This provides end-users with a better choice, ensuring that they are able to find the most suitable and ideal breaker-excavator match.
  • SILENT-TYPE OPEN-TYPE
  • Compact Class Medium Class Heavy Duty Class
  • Standard Specification

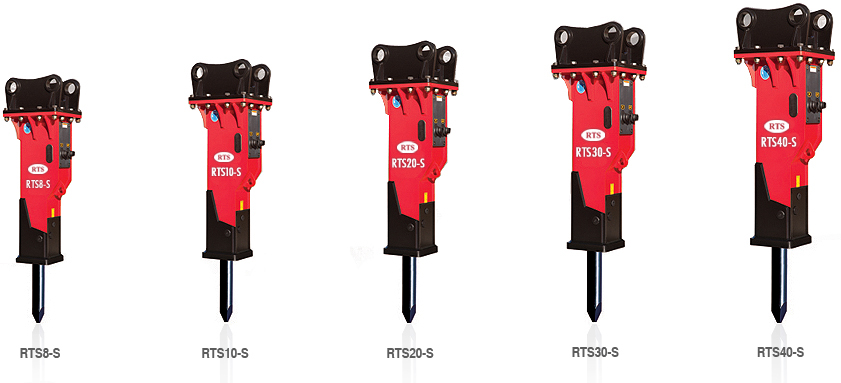

  • DESCRIPTION UNIT RTS8-S RTS10-S RTS20-S RTS30-S RTS40-S
    Operating Weight kg 108 216 385 458 607
    lbs 238 476 849 1,010 1,338
    Impact Rate bpm 700 ~ 1,200 550 ~ 1,000 500 ~ 950 450 ~ 1,000 400 ~ 750
    Operating Pressure bar 80 ~100 90 ~120 95 ~130 100 ~130 130 ~150
    psi 1,160 ~1,450 1,305 ~1,740 1,378 ~1,885 1,450 ~1,885 1,885 ~2,175
    Setting Pressure bar 130 150 160 160 180
    psi 1,885 2,175 2,320 2,320 2,611
    Back Head Pressure bar 12 16 16 16 16
    psi 174 232 232 232 232
    Required Oil Flow lpm 15 ~25 25 ~40 30 ~60 40 ~90 45 ~80
    Tool Diameter mm/inch 45 /1.77 53 /2.09 68 /2.68 75 /2.95 85/ 3.35
    Tool Length mm 460 580 690 800 800
    Suitable Ecavator ton 1.0 ~2.0 2.0 ~3.5 4.0 ~6.0 4.5~ 7.0 6.0 ~10.0
    lbs 2,205 ~4,409 4,409 ~7,716 8,818~ 13,227 9,920~ 15,432 13,227~ 22,045
    Noise Level LPA 85 86 87 88 88
    LWA 113 114 115 116 116
  • *Specifications and design are subject to change without notice.
  • *Operating weight includes a standard tool and top mounting cap.
