- RTS provides one of the most sophisticated solutions for your demolition needs in any working conditions with its many
different models
that are divided into various versions of small, medium range and large.
This provides end-users with a better choice, ensuring that they are able to find the most suitable and ideal breaker-excavator match.
-
-
- Standard Specification
| DESCRIPTION |
UNIT |

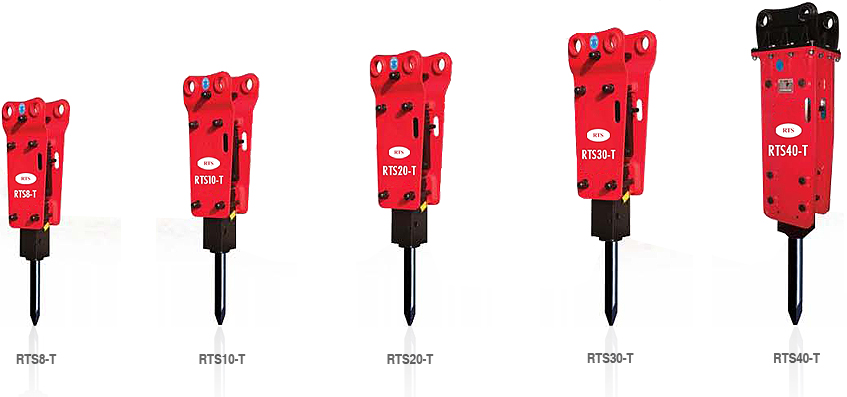

RTS8-T |
RTS10-T |
RTS20-T |
RTS30-T |
RTS40-T |
| Operating Weight |
kg |
97 |
162 |
281 |
383 |
592 |
| lbs |
214 |
357 |
619 |
844 |
1,305 |
| Impact Rate |
bpm |
700 ~ 1,200 |
550 ~ 1,000 |
500 ~ 950 |
450 ~ 1,000 |
400 ~ 750 |
| Operating Pressure |
bar |
80 ~100 |
90 ~120 |
95 ~130 |
100 ~130 |
130~ 150 |
| psi |
1,160 ~1,450 |
1,305~ 1,740 |
1,378 ~1,885 |
1,450~ 1,885 |
1,885 ~2,175 |
| Setting Pressure |
bar |
130 |
150 |
160 |
160 |
180 |
| psi |
1,885 |
2,175 |
2,320 |
2,320 |
2,611 |
| Back Head Pressure |
bar |
12 |
16 |
16 |
16 |
16 |
| |
psi |
174 |
232 |
232 |
232 |
232 |
| Required Oil Flow |
lpm |
15 ~25 |
25 ~40 |
30 ~60 |
40 ~90 |
45 ~80 |
| Tool Diameter |
mm/inch |
45 /1.77 |
53 /2.09 |
68 /2.68 |
75 /2.95 |
85 /3.35 |
| Tool Length |
mm |
460 |
580 |
690 |
800 |
800 |
| Suitable Ecavator |
ton |
1.0 ~2.0 |
2.0 ~3.5 |
4.0 ~6.0 |
4.5 ~7.0 |
6.0 ~10.0 |
| lbs |
2,205 ~4,409 |
4,409 ~7,716 |
8,818 ~13,227 |
9,920 ~15,432 |
13,227~ 22,045 |
- *Specifications and design are subject to change without notice.
- *Operating weight includes a standard tool and top mounting cap.
