  • HYDRAULIC BREAKERS(N2 Gas Assisted) HYDRAULIC BREAKERS
  • RTS provides one of the most sophisticated solutions for your demolition needs in any working conditions with its many different models
    that are divided into various versions of small, medium range and large.
    This provides end-users with a better choice, ensuring that they are able to find the most suitable and ideal breaker-excavator match.
  • SILENT-TYPE OPEN-TYPE
  • Compact Class Medium Class Heavy Duty Class
  • Standard Specification

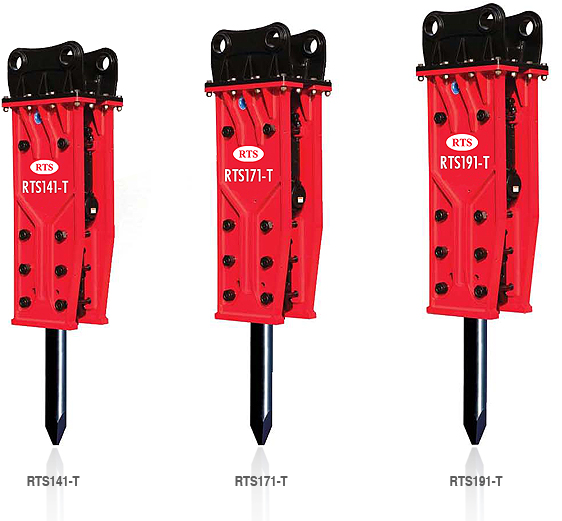

  • DESCRIPTION UNIT RTS141-T RTS171-T RTS191-T
    Operating Weight kg 3,630 4,381 6,500
    lbs 8,002 9,658 14,329
    Impact Rate bpm 250 ~ 330 230 ~ 320 245 ~ 325
    Operating Pressure bar 160 ~180 160 ~180 160 ~180
    psi 2,320 ~2,611 2,320~ 2,611 2,320 ~2,611
    Setting Pressure bar 220 220 220
    psi 3,191 3,191 3,191
    Back Head Pressure bar 13 13 13
    psi 189 189 189
    Accumulator Pressure bar 60
    psi 870
    Required Oil Flow lpm 200 ~260 210 ~290 300 ~400
    Tool Diameter mm/inch 160 /6.30 170 /6.69 205 /v
    Tool Length mm 1,500 1,600 1,700
    Suitable Ecavator ton 40.0 ~58.0 48.0 ~70.0 60.0 ~100.0
    lbs 88,180~ 127,861 105,816~ 154,315 132,270 220,450
  • *Specifications and design are subject to change without notice.
  • *Operating weight includes a standard tool and top mounting cap.
