  • HYDRAULIC BREAKERS(N2 Gas Assisted) HYDRAULIC BREAKERS

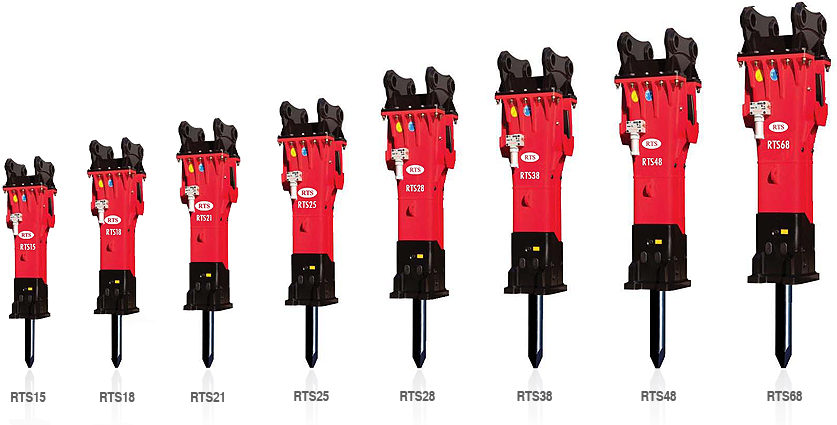

  • RTS Series-HYDRAULIC BREAKERS
  • RTS's full line-up of RTS series hydraulic breaker is well known for excellent working efficiency and durability
    which enables the equipment to resist the mechanical and thermal stress under unfavourable working conditions.
  • Standard Specification
  • DESCRIPTION UNIT RTS15 RTS18 RTS21 RTS25 RTS28 RTS38 RTS48 RTS68
    Operating Weight kg 1,050 1,500 1,874 1,910 2,396 3,006 3,920 4,682
    lbs 2,315 3,307 4,131 4,211 5,282 6,627 8,642 10,321
    Tool Diameter mm/inch 115/4.53 120/4.72 130/5.12 130/5.12 140/ 5.51 155/ 6.10 170/ 6.69 180/7.09
    Applicable Excavator ton 13.0 ~20.0 18.0~ 25.0 21.0 ~30.0 21.0~ 31.0 28.0 ~38.0 32.0 ~48.0 40.0~ 63.0 52.0 ~75.0
    lbs 28,659 ~44,090 39,681~55,113 46,295~ 66,135 46,295 ~68,340 61,726 ~83,771 70,544 ~105,816 88,180 ~138,884 114,634 ~165,338
    Impact Rate bpm 350 ~ 550 350 ~ 500 350 ~ 500 350 ~ 500 360 ~ 520 320 ~ 420 300 ~ 400 250 ~ 350
    Operating Pressure bar 140 140 140 140 140 145 155 155
    psi 2,030 2,030 2,030 2,030 2,030 2,103 2,248 2,248
    Setting Pressure bar 175 175 175 175 175 185 190 190
    psi 2,538 2,538 2,538 2,538 2,538 2,683 2,756 2,756
    Back Pressure bar 5 5 5 5 5 5 5 5
    psi 73 73 73 73 73 73 73 73
    Accumulator Pressure bar 40 40 40 40 40 40 40 40
    psi 580 580 580 580 580 580 580 580 ~
    Required Oil Flow lpm 70 ~110 110 ~150 120 ~160 120 ~160 160 ~230 170 ~240 190 ~250 220 ~350
    Noise Level LPA 94 95 95 95 96 97 98 99
    LWA 122 123 123 123 124 125 126 127
