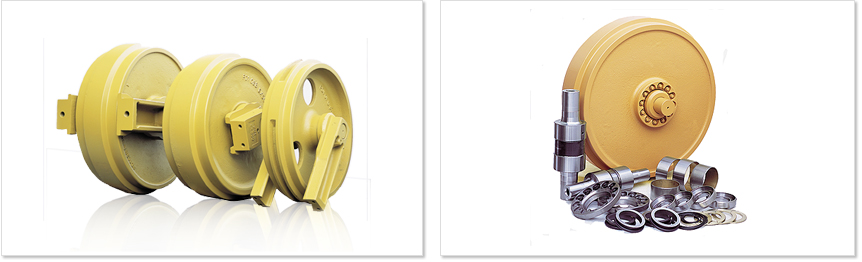

HOME > UNDERCARRIAGE > Idler
  • PRODUCT LIST FOR Idler
  • No Maker Model Description RTS# Berco PN# OEM PN# weight
    1 Caterpiller 311 / 312 Idler Group 02011002 　 4I7337 90Kgs
    2 Caterpiller E200B / EL200B Idler Group 02011003 CR5732 113-2907 135Kgs
    3 Caterpiller E300B Idler Group 02011005 　 960253 198Kgs
    4 Caterpiller E305/CAT305 Idler Group 02011016 　 124-4601 35Kgs
    5 Caterpiller 320 / 315 / 320L Idler Group 02011006 CR5732 102-8151 135Kgs
    6 Caterpiller 322B Idler Group 02011007 CR5786 115-6337 132Kgs
    7 Caterpiller 325 / 325L Idler Group 02011008 CR5884 102-8155 / 115-3696 170Kgs
    8 Caterpiller 330 / 330L Idler Group 02011009 CR6087 102-8152 240Kgs
    9 Caterpiller 345B Idler Group 02011010 CR6597 115-6366 250Kgs
    10 Caterpiller 350 Idler Group 02011011 CR6403 135-8903 350Kgs
    11 Caterpiller E120B Idler Group 02011012 CR7337 　 90Kgs
    12 Caterpiller D3C Idler Group 02012001 CR3004 9N4173/6S3277/106-9187 110Kgs
    13 Caterpiller D4D-E(585) / 941 Idler Group 02012002 CR3287 1M8867 & WS3 &BKT 135Kgs
    14 Caterpiller D4D-E(585) / 941 Idler / Shaft 02012003 CR3286 1M8867 & WS3 128Kgs
    15 Caterpiller D4D-E(585) / 941/E943 Idler Shell 52012002 CR1515E 1M8867 115Kgs
    16 Caterpiller D4D-E(616) / 941 Idler Group 02012005 CR3661 3K2866 & WS3 &BKT 135Kgs
    17 Caterpiller D4D-E(616) / 941 Idler / Shaft 02012006 CR3660 3K2866 & WS3 128Kgs
    18 Caterpiller D4D-E(616) / 941 Idler Shell 52012005 CR1439C 3K2866 115Kgs
    19 Caterpiller 943 Idler Group 02013001 CR3750 7P8917 115Kgs
    20 Caterpiller D4H ( 500 mm ) Idler Group 02012008 CR4585 160-9753 / 6T2614 100Kgs
    21 Caterpiller D4H ( 475 mm ) Idler Group 02012009 CR4587 190-1551 90Kgs
    22 Caterpiller D5-B Idler Group 02012010 CR3190 7T3501 & WS3 & BKT 170Kgs
    23 Caterpiller D5-B Idler / Shaft 02012011 CR3189 7T3501 & WS3 135Kgs
    24 Caterpiller D5-B Idler Shell 52012010 　 7T3501 110Kgs
    25 Caterpiller 953-C Idler Group 02013002 　 7P9017 177Kgs
    26 Caterpiller D5-C Idler Group 02012013 CR5420 9U9065 157Kgs
    27 Caterpiller D5H Idler Group 02012014 CR4589 161-7549/6T1763 120Kgs
    28 Caterpiller D6C-D Idler Group 02012015 CR4094 7T4562 & WS1 & BKT 180Kgs
    29 Caterpiller D6C-D Idler / Shaft 02012016 CR1833A 7T4562 & WS1 170Kgs
    30 Caterpiller D6C-D Idler Shell 52012015 CR1834C 7T4562 / 5M5009 148Kgs
    31 Caterpiller 963-B Idler Group 02013003 　 7P2719 212Kgs
    32 Caterpiller D6H ( 545 mm ) Idler Group 02012018 CR4909 151-4587 / 7T6996 150Kgs
    33 Caterpiller D6H ( 570 mm ) Idler Group 02012019 CR4616 149-2493 / 6T3216 160Kgs
    34 Caterpiller D7F-G Idler Group 02012020 CR4095 7T4509 & WS1 & BKT 265Kgs
    35 Caterpiller D7F-G Idler / Shaft 02012021 CR2698 7T4509 & WS1 235Kgs
    36 Caterpiller D7F-G Idler Shell 52012020 CR1168F 7T4509 / 1S8186 205Kgs
    37 Caterpillar 973 Idler Group 02013004 　 7T4509 &  WS5 & BKT 265Kgs
    38 Caterpiller D7H (585mm) Idler Group 02012023 CR4911 6Y2031/135-9896 240Kgs
    39 Caterpiller D7H (628mm) Idler Group 02012024 CR4593 9W7647 260Kgs
    40 Caterpiller D8H-K Idler Group 02012025 CR4096 9W7647 340Kgs
    41 Caterpiller D8H-K Idler / Shaft 02012026 CR2637 9S7221 & WS1 320Kgs
    42 Caterpiller D8H-K Idler Shell 52012025 CR1227C 9S7221 290Kgs
    43 Caterpiller D8N ( 698mm) Idler Group 02012028 CR4530 111-1730/9W9989/6Y0557 340Kgs
    44 Caterpiller D8N ( 620mm ) Idler Group 02012029 CR4531 111-1729 / 6Y0554 300Kgs
    45 Caterpiller D9G-H Idler Group 02012030 CR4098 5S1532 & WS1 & BKT 425Kgs
    46 Caterpiller D9G-H Idler / Shaft 02012031 CR2744 5S1532 & WS1 400Kgs
    47 Caterpiller D9G-H Idler Shell 02012032 CR1506B 5S1532 380Kgs
    48 Caterpiller D9L Idler Group 02012033 CR4311 9W6039 445Kgs
    49 Caterpiller D9N - R Idler Group 02012034 CR4681 125-4655 436Kgs
    50 Caterpiller D10N-R Idler Group 02012035 CR5045 125-3537 620Kgs
    51 Caterpiller D11N-R Idler Group 02012036 　 156-0313 910Kgs
    52 Mitsubishi BS3F L/H /BD2G   Idler Group 02131001 　 58843-10020 57Kgs
    53 Mitsubishi BS3F R/H/BD2G Idler Group 02131001 　 58843-10021 57Kgs
    54 DOOSAN S50 Idler Group 02061001 　 2270-1040C 35Kgs
    55 DOOSAN S55-V Idler Group 02061011 　 270-00052B 42Kgs
    56 DOOSAN S130/130-3/S130-5 Idler Group 02061002 　 2270-1052 100Kgs
    57 DOOSAN S200LC / S220LC / S220LC-3 / S220LC-5 Idler Group 02061003 　 2270-1064P /2270-1108 125Kgs
    58 DOOSAN S280LC / S280LC-3 / S280LC-5 / S320 Idler Group 02061004 　 2270-1028 170Kgs
    59 DOOSAN DH250 Idler Group 02061010 　 270-00015 140Kgs
    60 DOOSAN S360LC-3 / S400LC-3 /S400-5 Idler Group 02061005 　 2270-9009A 215Kgs
    61 DOOSAN S450LC-3/S450-3 Idler Group 02061006 　 2270-9405E 245Kgs
    62 DOOSAN S450 /DX480 Idler Group 02061006 　 2270-9405B 245Kgs
    63 HITACHI EX40U Idler Group 02031019 　 9163767 38Kgs
    64 HITACHI EX60-1 Idler Group 02031001 　 9068477/9097574 60Kgs
    65 HITACHI EX60-2/3 Idler Group 02031002 AT200695 9097575 /9154166 60Kgs
    66 HITACHI EX100-1 / EX120-1 Idler Group 02031003 HT2747 9068144 82Kgs
    67 HITACHI EX100-2,5 / EX120-2,5 / ZX120 Idler Group 02031004 AT172696 9092973 82Kgs
    68 HITACHI EX150  Idler Group 02031007 AT172563 9069635 103Kgs
    69 HITACHI ZX200 Idler Group 02031014 ID1816 9176864 130Kgs
    70 HITACHI EX200-1/EX200LC Idler Group 02031008 9143400 9066393 125Kgs
    71 HITACHI EX200-2 / 3 /JD790E Idler Group 02031009 　 9089384 125Kgs
    72 HITACHI EX200-5 Idler Group 02031016 SI 738 9145269 130Kgs
    73 HITACHI EX270/EX300-1,2,3/JD792/JD892D Idler Group 02031010 SI 824 9115208 154Kgs
    74 HITACHI EX300-5 /ZX330 Idler Group 02031011 SI 829 9154690 177Kgs
    75 HITACHI EX400 / 400-1 /JD992D/JD992E Idler Group 02031012 9134152 9074011 232Kgs
    76 HITACHI EX550 Idler Group 02031017 　 9137270 320Kgs
    77 HITACHI EX700 Idler Group 02031018 　 9134272 420Kgs
    78 HYUNDAI HX100, DH280, 10 Idler Group 02071004 　 E282-2004 170Kgs
    79 HYUNDAI R130LC-3/R1300 Idler Group 02071012 　 81E6-2004 98Kgs
    80 HYUNDAI R130-7/R140LC-7 Idler Group 02071006 　 81N4-13010 100Kgs
    81 HYUNDAI R210, HX80, MX8 Idler Group 02071001 　 E181-2004 147Kgs
    82 HYUNDAI R210-3 Idler Group 02071002 　 81EM-14010 125Kgs
    83 HYUNDAI R210-7 Idler Group 02071007 　 81N6-13010 130Kgs
    84 HYUNDAI R2800KLC Idler Group 02071003 　 　 195Kgs
    85 HYUNDAI R290-7 Idler Group 02071008 　 81N8-13010 190Kgs
    86 HYUNDAI R360LC-3/R290-3 Idler Group 02071005 　 81E8-2004/81EH-00070 195Kgs
    87 HYUNDAI R450LC-3/7 Idler Group 02071011 　 81E7-01030 245Kgs
    88 HYUNDAI R500/R555MVP Idler Group 02071010 　 81M5-53000B 51Kgs
    89 JohnDeere JD450B-G Idler Group 02041001 ID0536 AT32571 118Kgs
    90 JohnDeere JD450B-G Idler Shell 52041001 ID0450 　 98Kgs
    91 JohnDeere JD 450H Idler Group 02041003 ID1820 AT210558 101Kgs
    92 JohnDeere JD 650H Idler Group 02041004 ID1821 AT211283 121Kgs
    93 JohnDeere JD750C Idler Group 02041005 ID1453 ID1453 180Kgs
    94 JohnDeere JD700H Idler Group 02041006 ID2164 ID2164 160Kgs
    95 JohnDeere 690D Idler Group 02041007 ID0609 AT 47057 120Kgs
    96 JohnDeere 690E Idler Group 02041008 ID892A AT 152096 120Kgs
    97 JohnDeere 790D / EX200-2 Idler Group 02041009 　 AT172699 122Kgs
    98 JohnDeere 790E / EX200-5 Idler Group 02031016 　 9145269 122Kgs
    99 JohnDeere 792D / 892D /892E/EX300-1 Idler Group 02031010 9115208 AT159063 154Kgs
    100 JohnDeere 992D/992E/EX400-1 Idler Group 02031012 9134152 AT167210 232Kgs
    101 Link-Belt LS2650C2 / CASE9010B Idler Group 02091001 　 KNA0375 92Kgs
    102 Link-Belt LS2650Q/SH120/CASE9010 Idler Group 02091002 166097A1 KNA0540 92Kgs
    103 Link-Belt LS2800C2 / CASE9020B/9030 Idler Group 02091003 JRA0214Y-A KRA0946 108Kgs
    104 Link-Belt LS2800Q/JCB200/SH200/CASE9030B Idler Group 02091004 KRA1767 KRA1198 100Kgs
    105 Link-Belt LS3400C2 / CASE9040B Idler Group 02091005 　 KBA0666 150Kgs
    106 Link-Belt LS3400Q/SH220 Idler Group 02091006 　 KBA0877 150Kgs
    107 Link-Belt LS4300Q/SH300/CASE9050B Idler Group 02091008 E2A0061 C8A0173 185Kgs
    108 Kobelco SK015 Idler Group 　 　 S04214-01200 　
    109 Kobelco SK100/SK120/-2 Idler Group 02111003 KB39 24100N6504F1 88Kgs
    110 Kobelco SK200 /-3/-5 Idler Group 02111004 SI894 24100N5948F2 123Kgs
    111 Kobelco SK220 Idler Group 02111005 LQ52D00003F2 24100J11697F1 150Kgs
    112 Kobelco SK300 Idler Group 02111006 　 24100N3099F 200Kgs
    113 Kobelco SK330-6  Idler Group 02111009 LC52D00002F1  LC52D00002F1  215Kgs
    114 Kobelco SK400 Idler Group 02111007 LS52DU0001F1  　 280Kgs
    115 Kobelco SK200-8 Idler Group 　 　 YN51D01003P1E 　
    116 Kobelco SK125SR Idler Group 　 　 YY52D00007F1E 　
    117 Komatsu PC30-2 Idler Group 02021015 　 22F-30-00211 27Kgs
    118 Komatsu PC40-2 Idler Group 02021016 　 22M-30-00260 38Kgs
    119 Komatsu PC40-7 Idler Group 02021012 　 20T-30-00112 40Kgs
    120 Komatsu PC40MR-2/PC50MR-2 Idler Group 02021017 　 22M-30-00260 40Kgs
    121 Komatsu PC60-1 / D20 Idler Group 02021001 KM914 103-30-00110 62Kgs
    122 Komatsu PC60-5 Idler Group 02021002 　 201-30-00012 62Kgs
    123 Komatsu PC60-7 Idler Group 02021003 　 201-30-00260 62Kgs
    124 Komatsu PC120-3 Idler Group 02021004 　 203-30-00100 80Kgs
    125 Komatsu PC120-5 Idler Group 02021005 　 203-30-00133 80Kgs
    126 Komatsu PC200-3 Idler Group 02021006 KM1641 205-30-00182 132Kgs
    127 Komatsu PC200-5 Idler Group 02021007 KM1642 20Y-30-00030 125Kgs
    128 Komatsu PC300-3 Idler Group 02021008 KM3270 207-30-00071 190Kgs
    129 Komatsu PC300-5 Idler Group 02021009 KM1927 /KM2018 207-30-00160 185Kgs
    130 Komatsu PC400-3 Idler Group 02021010 208-30-00070 205-30-00070 298Kgs
    131 Komatsu PC400-5/6 Idler Group 02021011 KM1973 208-30-00200 293Kgs
    132 Komatsu D20/D21 /PC60-1 Idler Group 02021001 KM0914 103-30-00110/103-30-00120 62Kgs
    133 Komatsu D31-17 Idler Group 02022002 KM0840 113-27-31320 100Kgs
    134 Komatsu D30-20 Idler Group 02022011 　 113-30-00102  90Kgs
    135 Komatsu D40P/D41-P6 Idler Group 02022003 KM841 124-30-00102 110Kgs
    136 Komatsu D65-8 w/ Bracket /D60-65 /15P Idler Group 02022005 KM0834 144-30-00038 209Kgs
    137 Komatsu D65E-12/ D85SS-2/ D85ESS-12 Idler Group 02022010 KM2107 14X-30-00112 187Kgs
    138 Sumitomo SH75X-3 Idler Group 02091012 　 KAA1255 37Kgs
    139 Sumitomo SH120 Idler Group 02091002 LK262 KNA0540 91Kgs
    140 Sumitomo SH120-3 Idler Group 02091011 　 KNA1265 91Kgs
    141 Sumitomo SH200/LS2800Q Idler Group 02091004 LK144 KRA1198 100Kgs
    142 Sumitomo SH220 Idler Group 02091006 　 KBA0877 150Kgs
    143 Sumitomo SH300/LS4300Q Idler Group 02091008 　 C8A0173 185Kgs
    144 Morooka MST800 Idler Group 02101014 　 　 30Kgs
    145 Morooka MST1500 Idler Group 02101013 　 　 80Kgs
    146 SamSung MX3 /SE25 Idler Group 02081007 　 172124-95025 35Kgs
    147 SamSung EC55 Idler Group 02081016 　 1181-00450 37Kgs
    148 SamSung SE130LC/MX132/EC140 Idler Group 02081001 　 1081-04050 　
    149 SamSung SE210LC-2 /MX8-2/MX8/ Idler Group 02081003 　 1081-00980 /1030-60050 147Kgs
    150 SamSung SE210LC /MX222/  Idler Group 02081004 　 1081-03790 147Kgs
    151 SamSung SE210-3 / EC240 Idler Group 02081008 　 1181-00030 135Kgs
    152 SamSung SE280/2 / MX10-2 / MX292 / SE350 / EC360 Idler Group 02081005 LH0495 1081-00640 187Kgs
    153 SamSung EC290 / MX295 Idler Group 02081014 　 1181-00721(VOE14520766) 190Kgs
    154 SamSung SE450/EC460 Idler Group 02081015 　 1081-02222(VOE14510975) 240Kgs
    155 SamSung D6P Idler Group 02051011 　 R52404/3081-01970 103Kgs
    156 CASE 9010 Idler Group 02091002 166097A1 158878A1 91Kgs
    157 CASE 9010B Idler Group 02091001 　 KNA0375 81Kgs
    158 CASE 9020B/9030 Idler Group 02091003 　 KRA0946 108Kgs
    159 CASE 9030B Idler Group 02091004 　 KRA1198 99Kgs
    160 CASE 9040B Idler Group 02091005 　 KBA0666 150Kgs
    161 CASE 9050B Idler Group 02091008 　 E2A0061 185Kgs
    162 CASE 450C-550E Idler Group 02051007 CA0693 R58710 (R52404) 103Kgs
    163 Yanmar VIO35-1 Idler Group 02171001 　 172422-37010 25Kgs
    164 Int-Harvester TD7G/D32E-1 Idler Group 02091009 IN2806 1280499H92 125Kgs
    165 Int-Harvester TD8G Idler Group 02091010 IN2810A  IN2810A  135Kgs
    166 Takeuchi A14C Idler Group 02161001 　 05614-00600 90Kgs
    167 Takeuchi L5A Idler Group 02161002 　 06514-00000 30Kgs
    168 Takeuchi A14F Idler Group 02161003 　 05614-12000 91Kgs
    169 Takeuchi L9B Idler Group 02163001 　 06914-00100 60Kgs
