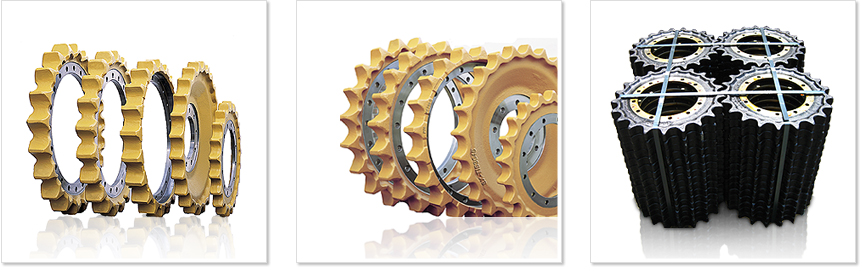

  • PRODUCT LIST FOR SPROCKET
  • No Maker Model Description RTS# Berco PN# OEM PN# weight
    1 Caterpiller E70B Sprocket 01013033 　 096-2144 35Kgs
    2 Caterpiller E307 Sprocket 01011001 　 5I9336 22Kgs
    3 Caterpiller E120B CR5337 Sprocket 01011002 CR5337 099-0219 40Kgs
    4 Caterpiller E200B/EL200B  Sprocket 01011003 CR5338 E84690100/ 096-4327 48Kgs
    5 Caterpiller EL240B CR5339 Sprocket 01011004 CR5339 959779 53Kgs
    6 Caterpiller E300B/EL300B CR5340 Sprocket 01011005 CR5340 099-4129 88Kgs
    7 Caterpiller E311/E110B/E312 CR6358 Sprocket 01011006 CR6358 4I7472 44Kgs
    8 Caterpiller E315 Sprocket 01011007 CR5606 102-8134 49Kgs
    9 Caterpiller E320/E320L/E322/E322N Sprocket 01011008 CR5602 8E9805 37Kgs
    10 Caterpiller E325/E325L Sprocket 01011009 CR5604 6Y4898 59Kgs
    11 Caterpiller E330/E330L Sprocket 01011010 CR5861A 6Y5685 78Kgs
    12 Caterpiller E345B Sprocket 01011011 CR6593 124-3296 67Kgs
    13 Caterpiller E350 Sprocket 01011012 CR6402 8E6974 85Kgs
    14 Caterpiller E375 Sprocket 01011013 CR6377 8E4686 142Kgs
    15 Caterpillar CAT 225 Sprocket 01013002 CR5334 9C2646 71Kgs
    16 Caterpillar 215-5 Rim Sprocket-Rim 01013003 CR3974 3T9154 22Kgs
    17 Caterpiller 215B Spline type Sprocket 01013001 CR4741 8V4734 70Kgs
    18 Caterpiller 225-4-R Sprocket-Rim 01013006 OK0483 3T9153 28Kgs
    19 Caterpiller 225-5 Sprocket 01013009 CR5090 6W2451 75Kgs
    20 Caterpiller 225-5-R Sprocket-Rim 01013008 CR3979 3T9152 30Kgs
    21 Caterpillar 235-7 R Sprocket-Rim 01013011 CR3980 7T1311 74Kgs
    22 Caterpillar 245 Rim(712MM) Sprocket-Rim 01013012 　 290-0861 100Kgs
    23 Caterpillar 245-B RIM Sprocket-Rim 01013012 　 7T1310 100Kgs
    24 Caterpiller 933-R Sprocket-Rim 01013013 CR1445 1M6226 29Kgs
    25 Caterpiller 951B RIM30 Sprocket-Rim 01013014 CR2050 8A1378 60Kgs
    26 Caterpiller 951C  Sprocket 01013015 CR2967 4V5374 105Kgs
    27 Caterpiller 951C-R Sprocket-Rim 01013016 CR2968 4V5376 60Kgs
    28 Caterpiller 955H-R Sprocket-Rim 01013018 CR1451 3K7677 57Kgs
    29 Caterpiller CAT205 (322-6236) Sprocket 01013028 　 322-6236 62Kgs
    30 Caterpillar CAT 215 (322-6304) Sprocket 01013026 　 322-6304 60Kgs
    31 Caterpillar CAT 215 (322-6302) Sprocket 01013029 　 322-6302 62Kgs
    32 Caterpillar CAT 215 (322-6303) Sprocket-Rim 01013030 　 322-6303 23Kgs
    33 Caterpillar CAT215SA (322-6377) Sprocket-Rim 01013032 　 322-6377 34Kgs
    34 Caterpillar CAT215SA (322-6376) Sprocket 01013031 　 322-6376 75Kgs
    35 Caterpiller CAT215SA (289-9674) Sprocket 01013025 　 289-9674 71Kgs
    36 Caterpiller CAT225SA TYPE1(289-2205) Sprocket 01013021 　 289-2205 128Kgs
    37 Caterpiller CAT225SA TYPE2(289-2206) Sprocket 01013022 　 289-2206 135Kgs
    38 Caterpiller CAT235(289-2209) Sprocket 01013010 　 289-2209 153Kgs
    39 Caterpiller CAT235 RIM(289-2211) Sprocket-Rim 01013023 　 289-2211 78Kgs
    40 Caterpiller CAT235SA RIM(289-2207) Sprocket-Rim 01013024 　 289-2207 58Kgs
    41 Caterpiller CAT245 RIM(290-0861) 723MM Sprocket-Rim 01013027 　 290-0861 100Kgs
    42 Caterpiller D3-D3B-R  Sprocket-Rim 01012001 CR3006 6S8270 27Kgs
    43 Caterpillar D3-D3C-R Sprocket-Rim 01012001 CR4752 6Y1244 26Kgs
    44 Caterpillar D3G Rim Sprocket-Rim 01012002 　 　 27Kgs
    45 Caterpiller D4D-E  Sprocket 01012005 CR2595 4V4106 74Kgs
    46 Caterpiller D4D-E-R Sprocket-Rim 01012006 CR2594 4V4107 34Kgs
    47 Caterpiller D4-R Sprocket-Rim 01012007 CR0963 5H9107 34Kgs
    48 Caterpiller D5-R Sprocket-Rim 01012008 CR2194 5S4822 50Kgs
    49 Caterpiller D6-R Sprocket-Rim 01012011 CR1819 3H2643 50Kgs
    50 Caterpiller D7-R (23T) Sprocket-Rim 01012013 　 112-0018 78Kgs
    51 DOOSAN S50 Sprocket 01061001 　 2108-1025BP-S 17Kgs
    52 DOOSAN S50C Sprocket 01061010 　 　 17Kgs
    53 DOOSAN DH028 Sprocket 01061012 　 68271-13552 25Kgs
    54 DOOSAN S130 / S130-3 / DH130-2/DX140 Sprocket 01061002 　 2108-1005-A 45Kgs
    55 DOOSAN S200LC / S220LC/UH08(LC)1007467 Sprocket 01061003 　 2108-1014A 43Kgs
    56 DOOSAN S220LC-3 Sprocket 01061004 　 2108-1028A 48Kgs
    57 DOOSAN S220-5/DX220 Sprocket 01061011 108-00017A 108-00017 48Kgs
    58 DOOSAN S280LC / S280LC-3 Sprocket 01061006 　 2108-1015A 70Kgs
    59 DOOSAN S280B Sprocket 01061013 　 2108-1021 75Kgs
    60 DOOSAN S290-5 Sprocket 01061005 108-00018S 2108-1038 75Kgs
    61 DOOSAN S300 Sprocket 01061014 　 　 85Kgs
    62 DOOSAN S320 Sprocket 01061007 　 2108-1024A 100Kgs
    62 DOOSAN DX300 Sprocket 01061016 　 108-000022B 73Kgs
    63 DOOSAN S400/S360LC-3 Sprocket 01061008 　 2108-4003A 76Kgs
    64 DOOSAN S450-3/S470LC-5 Sprocket 01061009 　 2108-1031B 　
    65 Hitachi EX60-1 Sprocket 01031001 　 1010447 27Kgs
    66 Hitachi EX60-2/3 Sprocket 01031002 　 1012495 24Kgs
    67 Hitachi EX100 / EX120 / ZX130/ JD490E Sprocket 01031004 FT3056 1010325 37Kgs
    68 Hitachi ZX135US/ZX135 Sprocket 01031029 　 　 35Kgs
    69 Hitachi EX150 / JD590D Sprocket 01031005 FT3057 1008249 48Kgs
    70 Hitachi EX200-1 Sprocket 01031009 FT3058 1010204 50Kgs
    71 Hitachi EX200-2 / EX220 Sprocket 01031010 FT3059 1010203 49Kgs
    72 Hitachi EX200-3 / EX200-5 / ZX210 Sprocket 01031011 HT0403 1018740 49Kgs
    73 Hitachi ZX240-3/ZX250 Sprocket 01031027 　 1032489 49Kgs
    74 Hitachi ZX270-3 Sprocket 01031028 　 1033227 62Kgs
    75 Hitachi ZX330-3 Sprocket 01031026 　 1033163 62Kgs
    76 Hitachi EX270 / EX300 / JD892D LC Sprocket 01031012 FT3060 1017728/1010467 63Kgs
    77 Hitachi EX300-3  Sprocket 01031013 HT0410 1017928 63Kgs
    78 Hitachi EX300-5 / ZX330 / ZX350 Sprocket 01031014 FT3060-20 1022168 62Kgs
    79 Hitachi EX400 /JD992D+E Sprocket 01031015 FT3061 1010956 91Kgs
    80 Hitachi UH08-3/UH07-7 Sprocket 01131005 　 1005954 47Kgs
    81 Hitachi ZX30U-2 Sprocket 01031024 　 1032265 15Kgs
    82 Hitachi EX550 Sprocket 01031020 120265 1017431 110Kgs
    83 Hitachi EX700/ZX800,ZX850-3 Sprocket 01031021 HT543 1017812/4430291 132Kgs
    84 Hitachi EX1100 Sprocket 01031022 　 1013481 200Kgs
    85 Hitachi EX1800 Sprocket 01031023 4455125 1009635 360Kgs
    86 HyunDai R555MVP Sprocket 01071011 　 　 17Kgs
    87 HyunDai R130LC-3 Sprocket 01071005 　 81E6-10052 35Kgs
    88 HyunDai EC140LC / R1300 Sprocket 01071006 　 　 33Kgs
    89 HyunDai R210LC-3 / SE210LC-2 Sprocket 01081007 　 81EM-10010 50Kgs
    90 HyunDai R210-7/R250-7 Sprocket 01071009 　 81EM-10012  50Kgs
    91 HyunDai R280 /MX292(16holes) Sprocket 01071003 　 E282-2001 81Kgs
    92 HyunDai R290/-3 (24holes) Sprocket 01081009 　 81E5-2001/81EO20011 81Kgs
    93 HyunDai R290-7/R320LC-7 Sprocket 01071010 　 81N8-10012 92Kgs
    94 HyunDai R360LC-3/7 Sprocket 01071008 　 81EH-10010/81EH-10012/81EH-10013 88Kgs
    95 HyunDai R450LC-3/7 Sprocket 01071007 　 84E7-00660/84E7-00662/84E7-00663 105Kgs
    96 JohnDeere JD450G-B  Sprocket 01041001 ID655A T175962 45Kgs
    97 JohnDeere JD450H-B  Sprocket 01041016 ID655A T175962 50Kgs
    98 JohnDeere JD650G Sprocket 01041003 ID0792 T106860/T175961 57Kgs
    99 JohnDeere JD650H Sprocket 01041004 ID1431A T178484 61Kgs
    100 JohnDeere 350B Sprocket 01041005 ID0110 T129679 35Kgs
    101 JohnDeere JD350S Sprocket 01041002 ID0167 　 28Kgs
    102 JohnDeere JD400S Sprocket 01041006 　 　 34Kgs
    103 JohnDeere JD490E/EX100 Sprocket 01031004 FT3056 TH108826 39Kgs
    104 JohnDeere JD690B Sprocket 01041009 ID0560 T71024 35Kgs
    105 JohnDeere JD690D Sprocket 01041010 ID1311 T105364 50Kgs
    106 JohnDeere JD690E-LC Sprocket 01041011 ID0863 T139591 55Kgs
    107 JohnDeere JD750 Sprocket 01041012 ID0522 T63963 52Kgs
    108 JohnDeere JD755 Sprocket 01041013 ID0616 T78652 75Kgs
    109 JohnDeere JD850 Sprocket 01041014 ID0528 T51521/T78649 105Kgs
    110 JohnDeere JD790 / JD790LC/EX200 Sprocket 01031009 FT3058 　 50Kgs
    111 JohnDeere JD790D / JD790E/EX200-2 Sprocket 01031010 FT3059 TH109726 49Kgs
    112 JohnDeere 892D LC / EX300-1 Sprocket 01031012 FT3060 　 63Kgs
    113 JohnDeere 892D+E / EX300-3 Sprocket 01031013 HT0410 TH111091 63Kgs
    114 JohnDeere 992D+E / EX400 Sprocket 01031015 FT3061 AT131565 91Kgs
    115 CASE 350 Sprocket 01051001 　 D43357      42Kgs
    116 CASE 350B Sprocket 01051002 CA0666 R41427 42Kgs
    117 CASE 450A Sprocket 01051003 CA0379 R24570 43Kgs
    118 CASE 450C Sprocket 01051004 CA0690 R52698 40Kgs
    119 CASE 450C LGP Sprocket 01051005 CA0840 R52699 54Kgs
    120 CASE 550E Sprocket 01051006 CA0802 R57298 43Kgs
    121 CASE 550E LGP Sprocket 01051007 　 R57281 59Kgs
    122 CASE 850B-C Sprocket 01051008 CA0543 R45906 41Kgs
    123 CASE 850D Sprocket 01051009 CA0677 R52597 53Kgs
    124 CASE 850D LGP Sprocket 01051010 CA0841 R53117 70Kgs
    125 CASE 850E Sprocket 01051011 CA0812 R56464 45Kgs
    126 CASE 850E LGP Sprocket 01051012 CA0846 R56535 65Kgs
    127 CASE 1150 Sprocket 01051013 CA0170 D36170 60Kgs
    128 CASE 1450 Sprocket 01051014 CA488 R41002 85Kgs
    129 CASE 1150D-E Sprocket 01051015 CA0689 R53118 89Kgs
    130 CASE 1150E LGP Sprocket 01051016 CA0842 R53119 104Kgs
    131 CASE 9010B/LS2650Q Sprocket 01091004 　 　 50Kgs
    132 Sumitomo LS2650FJ2/S260FJ2 Sprocket 01091003 　 KNA0343 50Kgs
    133 Sumitomo LS2650Q/SH120 /CASE9010B KNA0343 Sprocket 01091004 LK0119 KNA0323 50Kgs
    134 Sumitomo SH120-3 Sprocket 01091014 　 KNA1256 55Kgs
    135 Sumitomo LS2700Q / CASE9020B /SH150 Sprocket 01091006 　 KLA0083 57Kgs
    136 Sumitomo LS2800C2 Sprocket 01091007 　 KRA1078 53Kgs
    137 Sumitomo LS2800Q / CASE9030B Sprocket 01091008 LK105 KRA1109 50Kgs
    138 Sumitomo LS3400C Sprocket 01091009 KBA0425 151112A1 83Kgs
    139 Sumitomo LS3900Q/LS4300Q/CASE9050B Sprocket 01091010 LK107A KSA0643 108Kgs
    140 Sumitomo LS5800Q/LS6000Q/CASE9060B Sprocket 01091011 　 KTA1007 84Kgs
    141 Sumitomo SH350-2 Sprocket 01091012 　 KSA0826 118Kgs
    142 Kobelco SK035 Sprocket 　 　 PW53001001P1 　
    143 Kobelco SK60 Sprocket 01111001 　 2404N267 22Kgs
    144 Kobelco SK100/SK04N2/SK120 Sprocket 01111002 　 2404N271/2404N254 35Kgs
    145 Kobelco SK100L-5 Sprocket 01111003 　 2404N427 35Kgs
    146 Kobelco SK200-3/SK200-5 Sprocket 01111004 SI 881 2404N262 49Kgs
    147 Kobelco SK220 Sprocket 01111013 　 LQ51D01001P 65Kgs
    148 Kobelco SK220-3  Sprocket 01111005 　 2404N264 63Kgs
    149 Kobelco SK250 Sprocket 01111012 　 YN51D01002P1 51Kgs
    150 Kobelco SK300  Sprocket 01111006 　 2404N256 88Kgs
    151 Kobelco SK400 Sprocket 01111007 　 　 125Kgs
    152 Kobelco SK480/SH400-3 Sprocket 01111014 SI1067 LS51D01001P1 / KTA1069 120Kgs
    153 Kobelco SK200-6 Sprocket 01111015 　 2404N262E 　
    154 Kobelco SK330-8 Sprocket 01111017 　 LC51D01008P1E 　
    155 Kobelco SK200-8 Sprocket 01111016 　 YN51D01003P1E 　
    156 Kobelco SK125SR Sprocket 01111019 　 YY51D01006P1E 　
    157 Kobelco SK460-8 Sprocket 01111018 　 LS51D01001P1E 110Kgs
    158 Komatsu PC60 Rim Sprocket 01021001 KM 0912 101-98-00050 22Kgs
    159 Komatsu PC60-1/2/3/5/ D20 Sprocket 01021002 KM 0911 201-27-11530 37Kgs
    160 Komatsu PC60-6 / PC60-7 Sprocket 01021003 KM 3158 21W-27-11110 25Kgs
    161 Komatsu PC100-5 / 120-5,6 Sprocket 01021004 KM 1925 203-27-51310 37Kgs
    162 Komatsu PC180-2 / 220 / 200-3 Sprocket 01021005 KM 1217 205-27-71281 37Kgs
    163 Komatsu PC200-5 / 220-5 Sprocket 01021006 KM 1501 20Y-27-11581 37Kgs
    164 Komatsu PC300 / 280-3 / 300-5 / PC300-3 Sprocket 01021007 KM 1615 207-27-33222 57Kgs
    165 Komatsu PC300-6 Sprocket 01021008 KM 2385 207-27-61210 65Kgs
    166 Komatsu PC400-5 / PC400 Sprocket 01021009 KM 1616 208-27-31221 77Kgs
    167 Komatsu PC400-6 Sprocket 01021010 KM 2384A 208-27-61210 66Kgs
    168 Komatsu D31-17 Sprocket 01022001 KM0781 113-27-31320 40Kgs
    169 Komatsu D31 -17 Rim Sprocket 01022002 KM391A 113-98-22210 24Kgs
    170 Komatsu D41-6 / D41 Sprocket 01022003 KM2465 124-27-51351 80Kgs
    171 Koehring KO618 Sprocket 01121001 　 KO111 85Kgs
    172 Koehring KO628 Sprocket 01121002 　 KO114 95Kgs
    173 Koehring KO860 Sprocket 01121003 　 KO142 79Kgs
    174 Morooka MST800 Sprocket 01101012 　 1-14320-1110 30Kgs
    175 Morooka MST1500 Sprocket 01101013 　 1-11320-1110 32Kgs
    176 Morooka MST2000 Sprocket 01101014 　 　 56Kgs
    177 Morooka MST1500V Segment 01101015 　 1-49320-1110 7Kgs
    178 Morooka MST2000V Segment 01101017 　 1-28320-1110 10Kgs
    179 Morooka MST2200V Segment 01101016 　 1-28320-1120 17Kgs
    180 Mitsubishi BD2G Sprocket 01131004 　 55333-09900 28Kgs
    181 Mitsubishi HZM1560 Sprocket 01131006 　 　 10Kgs
    182 Mitsubishi LD1000 Sprocket 01101018 　 50C3310100 65Kgs
    183 Samsung EC55 Sprocket 01081016 　 1181-00421 17Kgs
    184 Samsung SE25, MX-3 Sprocket 01081001 　 1030-20030 16Kgs
    185 Samsung SE130LC-2/MX132/R130LC-3 Sprocket 01081003 　 1081-01021 35Kgs
    186 Samsung SE210/MX-8-2 Sprocket 01081005 　 1030-6001 48Kgs
    187 Samsung SE210-1/R200/R2000/MX-8 Sprocket 01081006 　 1081-6001 48Kgs
    188 Samsung SE210LC-2 / R210 /EC210 /R210LC-3/MX222 Sprocket 01081007 　 1181-00050 48Kgs
    189 Samsung SE210LC-3/EC240 Sprocket 01081013 　 1181-00380 48Kgs
    190 Samsung SE280LC-2, R290(81E5-2001)/MX295(24H) Sprocket 01081009 9110004 1081-03900 81Kgs
    191 Samsung SE350LC-2,-5/EC360 Sprocket 01081010 　 1081-01850 90Kgs
    192 Samsung SE450LC-2 /EC460/MX452 Sprocket 01081011 　 1081-02210 99Kgs
    193 Volvo EC140/SE130LC-3 Sprocket 01081015 　 1181-01190 35Kgs
    194 Volvo EC290LC Sprocket 01081012 VO0019 1181-00681 68Kgs
    195 Int-Harvester TD15B-R 27T Sprocket 01101001 IN2794 624498C91 70Kgs
    196 Int-Harvester TD15B-R 29T Sprocket 01101002 IN2206 325299R31 73Kgs
    197 Int-Harvester TD15C-R Sprocket 01101003 IN3104 707720C91 70Kgs
    198 Int-Harvester TD15E Sprocket 01101004 IN3444 1211905H1 66Kgs
    199 Int-Harvester TD20B-R 3/4" Sprocket 01101005 IN2798 629525C91 95Kgs
    200 Int-Harvester TD20C(190)1" Sprocket 01101006 IN3142 707721C91 95Kgs
    201 Int-Harvester TD20E-R/D87E Sprocket 01101009 IN3080 655425C3 87Kgs
    202 Int-Harvester TD7G / D32E-1 Sprocket 01101010 IN3491 741191C2 44Kgs
    203 Int-Harvester TD7E Sprocket 01101019 IN2807 　 44Kgs
    204 Int-Harvester TD8G/ D39E-1 Sprocket 01101011 IN3492 1211902H2 56Kgs
    205 JCB JS200 Sprocket 01151001 　 R26160A1M01 60Kgs
    206 Liebherr R952HD Sprocket-Rim 01161001 LH664 　 72Kgs
    207 Yanmar VIO30 Sprocket 01171001 　 172141-29110 8Kgs
