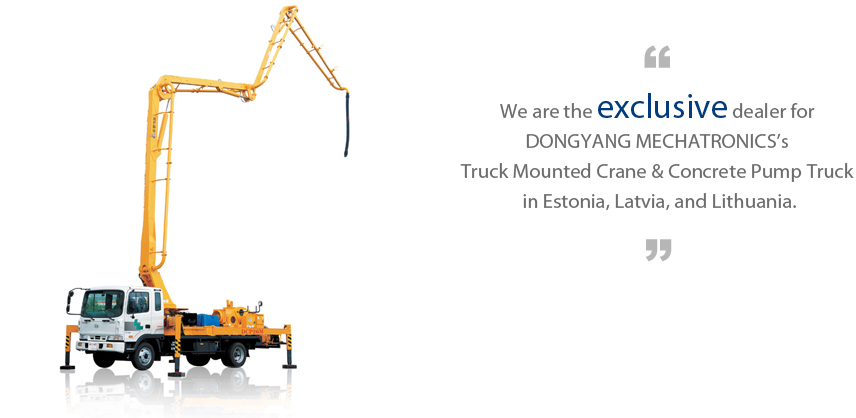

- SMALL CONCRETE PUMP TRUCK
-
| |
UNIT |
SPECIFICATION |
| MODEL |
|
DCP-60MN ACE |
DCP-26M |
DCP-26MS |
| Pump |
TYPE |
|
Double Roller Squeeze |
Double Roller Squeeze |
Single Roller Squeeze |
| Max. Concrete Output |
㎥/hr |
58 |
60 |
75 |
| Max. Pumping Distance |
Horizontal |
m |
169 |
169 |
188 |
| Vertical |
m |
49 |
49 |
68 |
| Max. Aggregate Size |
mm |
25 |
25 |
25 |
| Concrete Slump |
㎝ |
10 ~ 25 |
10 ~ 25 |
8 ~ 25 |
| Hopper Capacity |
ℓ |
300 |
300 |
300 |
| BOOM |
Type |
|
4 Stage Articulated System |
4 Stage Articulated System |
4 Stage Articulated System |
| Max. Vertical Reach |
m |
21 |
24.6 |
24.6 |
| Max. Working Radius |
m |
18 |
21.5 |
21.5 |
| Rotating angle |
˚ |
360 Continuous |
360 Continuous |
360 Continuous |
| Conveying Line Diameter |
mm |
105 |
105 |
105 |
| |
OUTRIGGER |
FRONT |
TYPE |
|
Auto Hydraulic, X type |
Auto Hydraulic, X type |
Auto Hydraulic, X type |
| MAX.EXTENTION |
mm |
5,200 |
5,200 |
5,200 |
| REAR |
TYPE |
|
Auro Hydraulic |
Auro Hydraulic |
Auro Hydraulic |
| MAX.EXTENTION |
mm |
4,000 |
5,300 |
5,300 |
| REMOTE CONTROL |
TYPE |
|
NO WIER JOY STICK (PROPORTIONAL) |
NO WIER JOY STICK (PROPORTIONAL) |
WIRE & NO WIER JOY STICK (PROPORTIONAL) |
| Cleanung |
TYPE |
|
Electric Water Pump |
Electric Water Pump |
Electric Water Pump |
| Water Tank Capacity |
ℓ |
400 |
600 |
600 |
| Vehicle |
Mountable Vehicle |
Max. Gross
Vehicle Weight |
Over 12.5Ton |
Over 12.5Ton |
Over 12.5Ton |
