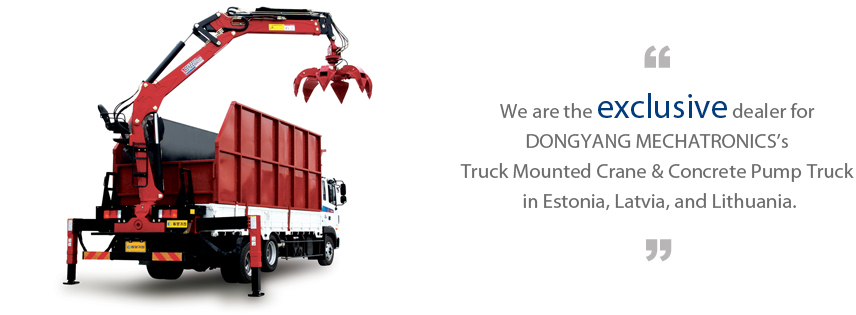

- KNUCKLE BOOM CRANE
-
| Description |
Unit |
SSN2200 |
SSN2700 |
SSN3000 |
| Max. Lifting Capacity |
ton.m |
10.5 |
12.0 |
15.0 |
| Lifting Weight / Outreach |
kg/m |
4,430 / 2.3 |
4,000 / 2.8 |
5,000 / 2.9 |
| 2,400 / 4.4 |
2,470 / 4.9 |
2,800 / 5.4 |
| 1,700 / 6.0 |
1,750 / 6.5 |
2,000 / 7.2 |
| 1,350 / 7.7 |
1,370 / 8.2 |
1,600 / 9.0 |
| Extended Width of Outrigger |
m |
4.7 |
4.7 |
5.0 |
| Max. Working Radius |
m |
8.0 |
8.2 |
9.0 |
| Oil Tank Capacity |
ℓ |
170 |
170 |
200 |
| Swing Angle |
deg. |
415 |
415 |
420 |
| Swing Speed |
deg./sec |
35 |
35 |
30 |
| Grapple Capacity |
㎥ |
0.35 |
0.4 |
0.4 |
| Mountable Vehicle |
Max, Gross Vehicle Weight |
over 12.5 ton |
over 12.5 ton |
over 17.1 ton |
