- RTS's full line-up of RWG series wood grapple is used for picking up and transporting logs and round wood mainly in open country or on timber yards.
- Special Features
- - Strong & stable holding work
- - Waterworks and sewer constructions
- - Various tine set(2+3/3+4)
- - 360° Rotating system
- - High-Wear resistance material(PT60, POSCO)
|
 |

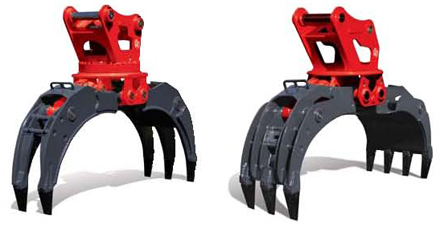

- RTS Wood Grapples
-
| DESCRIPTION |
UNIT |
RWG30 |
RWG40 |
RWG60 |
RWG80 |
RWG100 |
RWG140 |
| Leg Type |
q'ty |
2 + 3 |
| Applicable Excavator |
ton |
4.0~6.0 |
7.0~11 |
12~16 |
17~23 |
24~30 |
31~40 |
| lbs |
8818~13227 |
15432~24250 |
26455~35273 |
37478~50706 |
52910~66138 |
68343~88148 |
| Operating Weight |
kg |
250 |
390 |
740 |
1,380 |
1,700 |
1,900 |
| lbs |
553 |
862 |
1,635 |
3,050 |
3,757 |
4,199 |
| Dimension(HxLxW) |
mm |
600X417X1257 |
600X417X1257 |
770x517x1545 |
850x666x1911 |
1045x720x2065 |
1487x776x2069 |
| inch |
23.6x16.4x49.5 |
23.6x16.4x49.5 |
30.3x20.4x60.8 |
33.5x26.2x75.2 |
41.1x28.3x81.3 |
58.5x30.6x81.5 |
| Opened Width (W) |
mm |
1,033 |
1,033 |
1,307 |
1,544 |
1,702 |
1,810 |
| inch |
40.7 |
40.7 |
51.5 |
60.8 |
67.0 |
71.3 |
| Operating Pressure (Cylinder) |
bar |
110~140 |
120~160 |
150~170 |
160~180 |
160~180 |
180~200 |
| psi |
1595~2030 |
1740~2320 |
2175~2465 |
2320~2610 |
2320~2610 |
2610~2900 |
| Operating Pressure (Rotator) |
bar |
180 |
180 |
190 |
210 |
220 |
230 |
| psi |
2,610 |
2,610 |
2,755 |
3,045 |
3,190 |
3,335 |
| Required Oil Flow (Cylinder) |
lpm |
30~55 |
50~100 |
90~110 |
100~140 |
130~170 |
200~250 |
| Cylinder Q'ty |
pcs |
2 |
| Rotating Fuction |
ton |
Fully Hydraulic 360° |
| DESCRIPTION |
UNIT |
RWG200 |
RWG61 |
RWG81 |
RWG101 |
RWG141 |
RWG201 |
| Leg Type |
q'ty |
2 + 3 |
3 + 4 |
| Applicable Excavator |
ton |
41~50 |
12~16 |
17~23 |
24~30 |
31~40 |
41~50 |
| lbs |
90389~110231 |
26455~35273 |
37478~50706 |
52910~66138 |
68343~88184 |
90389~110231 |
| Operating Weight |
kg |
2,100 |
950 |
1,380 |
1,700 |
1,900 |
2,100 |
| lbs |
4,641 |
2,100 |
3,050 |
3,757 |
4,199 |
4,641 |
| Dimension(HxLxW) |
mm |
1487x776x2069 |
650x700x1750 |
725x948x2104 |
900x1100x2250 |
1000x1150x2400 |
1000x1200x2400 |
| inch |
58.5x30.6x81.5 |
25.6x27.6x68.9 |
28.5x37.3x82.8 |
34.5x43.3x88.6 |
39.4x45.3x94.5 |
39.4x47.2x94.5 |
| Opened Width (W) |
mm |
1,810 |
1,500 |
1,714 |
1,900 |
2,100 |
2,100 |
| inch |
71.3 |
59.1 |
67.5 |
74.8 |
82.7 |
82.7 |
| Operating Pressure (Cylinder) |
bar |
180~200 |
150~170 |
160~180 |
160~180 |
180~200 |
180~200 |
| psi |
2610~2900 |
2175~2465 |
2320~2610 |
2320~2610 |
2610~2900 |
2610~2900 |
| Operating Pressure (Rotator) |
bar |
230 |
190 |
210 |
220 |
230 |
230 |
| psi |
3,335 |
2,755 |
3,045 |
3,190 |
3,335 |
3,335 |
| Required Oil Flow (Cylinder) |
lpm |
250~320 |
90~110 |
100~140 |
130~170 |
200~250 |
250~320 |
| Cylinder Q'ty |
pcs |
2 |
| Rotating Fuction |
ton |
Fully Hydraulic 360° |
- * Specifications and design are subject to change without notice.
- * Hydraulic Hose(Basic Accessory) : All RWG-Series (4 Lines)
