  • RTS's full line-up of RSC series concrete crusher is an efficient solutions for concrete, steel and rebar processing, building and bridge demolition, and recycling.
  • Special Features
  • - Strong & stable compaction
  • - Waterworks and sewer constructions
  • - Interchangeable Jaw set design
  • - 360° Rotating system
  • - High-Wear resistance material(HARDOX 500/400)
    		•

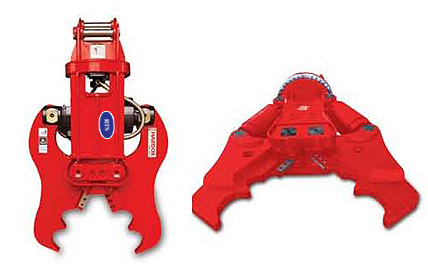

  • RTS Concrete Crushers
  • DESCRIPTION UNIT RSC10 RSC20 RSC30 RSC50 RSC51 RSC80 RSC100
    Applicable Excavator ton 0.7~1.0 1.5~2.5 2.5~4.0 4.0~8.0 4.0~8.0 18~26 27~36
    lbs 1,543~2,204 3,306~5,511 5,511~8,818 8,818~17,636 8,818~17,636 39,681~57,371 59,521~79,362
    Operating Weight kg 105 180 330 400 470 1,650 2,630
    lbs 231 397 727 882 1,036 3,637 5,798
    Dimension (HxLxH) mm 900x260x680 1,105x290x800 1,305x350x840 1,425x400x930 1,460x400x930 2,200x700x900 2,700x800x1,100
    inch 35.4x10.2x26.7 43.5x11.4x31.5 51.3x13.7x33.0 56.1x15.7x36.6 57.4x15.7x36.6 86.6x27.5x35.4 106.3x31.4x43.3
    Opened Inside Width (W2) mm/inch 280 360 430 530 530 900 1,100
    　 11 14 17 21 21 35 43
    Setting Pressure
    (Cylinder)    		 bar 210.00 210.00 210.00 210.00 210.00 300 320
    psi 3,046 3,046 3,046 3,046 3,046 4,350 4,640
    Required Oil Flow (Cylinder) l/min 15~35 20~45 30~75 40~80 40~80 200~250 250~300
    Setting Pressure (Rotator) bar - - - - - 160 160
    psi - - - - - 2,320 2,320
    Required Oil Flow (Rotator) l/min - - - - - 36~40 36~40
    Crushing Force ton 58 62 84 99 99 77*2 138*2
    Rotation ton Free 360° Hyd' 360°
    Cylinder Q'ty pcs 1 2
  • * Specifications and design are subject to change without notice.
  • * Hydraulic Hose(Basic Accessory) : RSC10~RSC50 (2 Lines) / RSC51~RSC100 (4 Lines)
