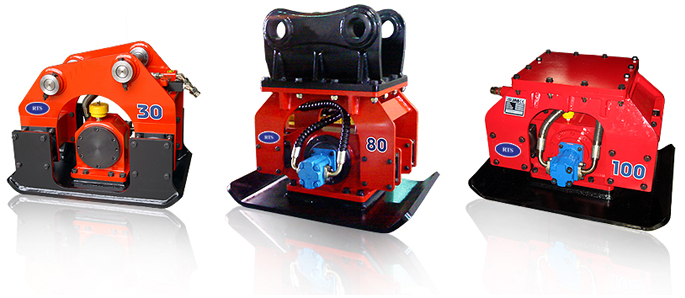

- RTS Company introduces the RVC30, RVC60, RVC80 and RVC100 vibratory plate compactor.
Combining powerful vibration force with great impact power, our compactors make quick work of any compaction or driving task.
For use on small and medium class excavators or backhoes, our compactor line-up is designed to work in any working condition where a boom can reach in trenches, around foundations, on slopes or seawalls.
- RTS Compactors
-
| Description |
Unit |
RVC30 |
RVC60 |
RVC80 |
RVC100 |
| Applicable Excavator |
ton |
2.0 ~ 7.0 |
6.0 ~ 15 |
18 ~ 25 |
24 ~ 35 |
| lbs |
4,409 ~ 15,431 |
13,227 ~ 33,067 |
39,681 ~ 55,112 |
52,908 ~ 77,157 |
| Operating Weight |
kg |
290 |
600 |
1,230 |
1,650 |
| lbs |
639 |
1,322 |
2,711 |
3,637 |
| Dimension (HxLxW) |
mm |
700x450x725 |
975x600x900 |
1,265x800x1,200 |
1,350x900x1,300 |
| inch |
27.5x17.7x28.5 |
38.3x23.6x35.4 |
49.8x31.4x47.2 |
53.1x35.4x51.1 |
| Plate Size |
mm * mm |
450 * 725 |
600 * 900 |
800 * 1,200 |
900 * 1,300 |
| Vibration per Minute(Max) |
vpm |
2,400 |
2,000 |
2,000 |
2,000 |
| Impulse Force |
ton |
1.8 |
4 |
10 |
17 |
| Operating Pressure |
bar |
90 ~ 130 |
100 ~ 130 |
120 ~ 160 |
130 ~ 170 |
| psi |
1,305 ~ 1,885 |
1,450 ~ 1,885 |
1,740 ~ 2,320 |
1,885 ~ 2,465 |
| Required Oil Flow |
l/min |
40 ~ 50 |
85 ~ 105 |
100 ~ 130 |
135 ~ 165 |
| Motor |
(USA) |
M124-20 |
M5100-50 |
M5100-63 |
M5100-80 |
| Flow Control Valve |
|
HF800S |
06 GRADE |
08 / 10 GRADE |
08 / 10 GRADE |
- *Specifications and design are subject to change without notice.
